JTC-BJ120 BOTTLE JACKS & AIR / HYDRAULIC JACKS
Qty:
  • Low profile design for most of industrial applications.
  • Forging base as the strongest construction to catch the needs in industry market.
  • Housing welding onto the forged base makes to be free of leakage problem as well.
  • Telescopic design of AJ300 & AJ500 reaches the extra needed during operating to save
     time and labor cost much.
  • Telescopic design of AJ120,AJ220,AJB1527 and AJB2035 reaches the extra height    during operation to save time and costs.
  • AJB1527,AJB2035,AJB300 and AJB500 equipped with two large Dia. Rubber wheels provide the greatest convenience and mobility you need.
  • Air / Hydraulic design make you free pumping handle also with the most efficiency
    and time saving.

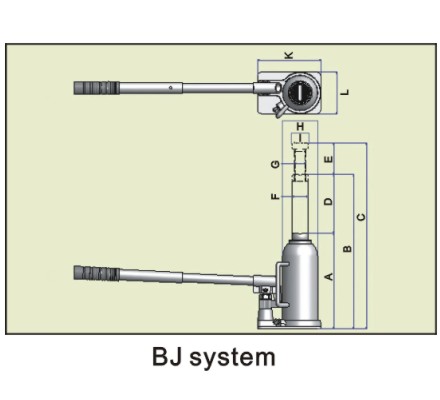

編號Item Capacity A B C D E F G H I J K L M

Hose
Length

 Handle
Length		 Auxiliary
Height
AJ120 12TON 241  389.5   469.5   148.5   80   39.95   29.5   89    42    180   160   105   107  5" 630   -
AJ220 22TON  240.5  369.5 449.5 129 80 56 29.5 114 42 205 185 130 132 5" 630 -
AJ300 30TON 279 441 - 162 - 65 - 140 - 235 - - - 5" 630 -
AJ500 50TON 304 475 - 171 - 75 - 163   260 - - - 5" 630 -
BJ120 12TON 241 389.5 469.5 148.5 80 39.95 29.5 89 42 507 460 105 - - 630 -
BJ220 22TON 240.5 369.5 449.5 129 80 56 29.5 114 42 507 185 130 - - 630 -
BJ300 30TON 279 441 - 162 - 65 - 140 - - 235 150 - - 630 -
BJ500 50TON 304 475 - 171 - 75 - 163 - - 260 180 - - 630 -
AJB1527 15 27 205 291 377 86 86 460 1155 - - - - - - 5" - 95
AJB2035 20 35 205 291 377 86 86 490 1155 - - - - - - 5" - 95
AJB300 30TON 247 367 - 120 - 460 1155 - - - - - - 5" - 95
AJB500 50TON 266 396 - 130 - 490 1155 - - - - - - 5" - 95
