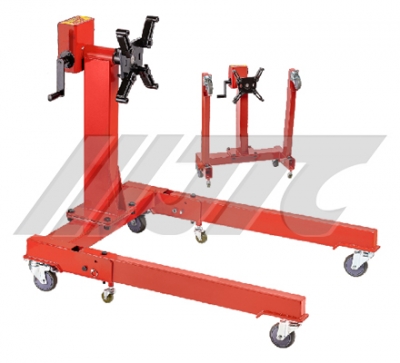

JTC-ES809 HEAVY DUTY ENGINE STAND-650KGS
Qty:
  • The same function as ES-707.
  • Extension of the swivel fixing base is longer for easier to repairing the engines.
  • Two heavy duty base legs for loading heavy engine.
  • The metal drain pan ES809P is available for option.
  • Capacity: 650 kgs.

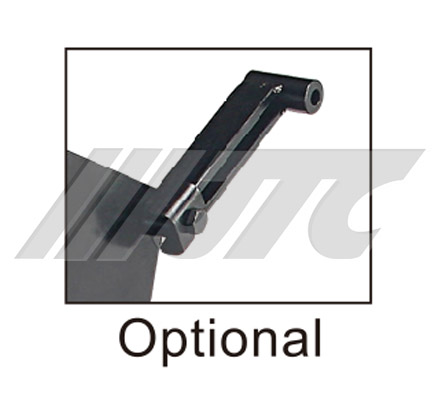

  • Optional: Extended legs -25cm.



    ITEM

    A(mm)

    B(mm)

    C(mm)

    D(mm)

    E(mm)

    ES450A

    450

    770

    622

    845

    900

    ES707

    373

    960

    820

    1173

    1069

    ES808

    665

    900

    781

    1249

    1040

    ES909

    342

    1065

    891

    MINI 953

    MAX 1361

    1069

    ES809

    860

    860

    690

     1250

    1005
