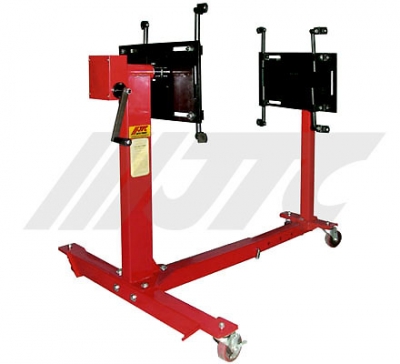

• A heavy duty repair stand fro mounting a great variety of engines transmissions,
and rear axles of trucks, tractors and construction equipment.
• 4 universal mounting arms in each mounting head allow you to mount a wide
variety of components without any other special adapters.
• Twin-post design features lateral adjustment and provides extremely a wide
variety of components without and provides extremely stable control.
• Gear box allows full rotating service for the mounted unit being removed as
the best location, just with turning of the crane. It provides manpower-saving extremely.
• Four swivel ball bearing caster wheels provide stability and easy maneuvering.
• N.W. 97kg G.W. 102kg CUFT. 8.6'
• Capacity:1000kg (1ton)

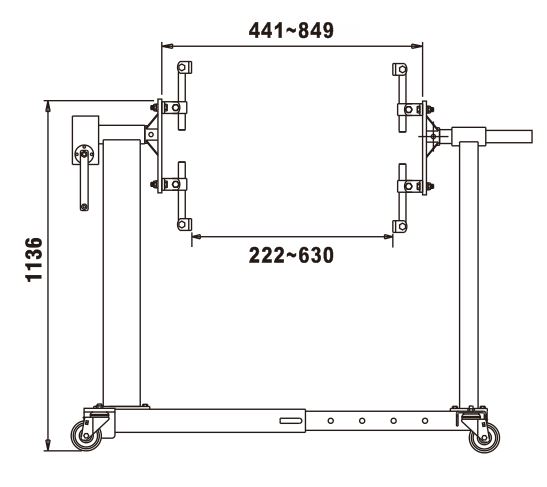

ITEM |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
ES450 |
380 |
710 |
635 |
878 |
ES707 |
373 |
960 |
984 |
1173 |
ES808 |
665 |
900 |
781 |
1249 |
ES909 |
355 |
965 |
891 |
MINI981
MAX1389
|
